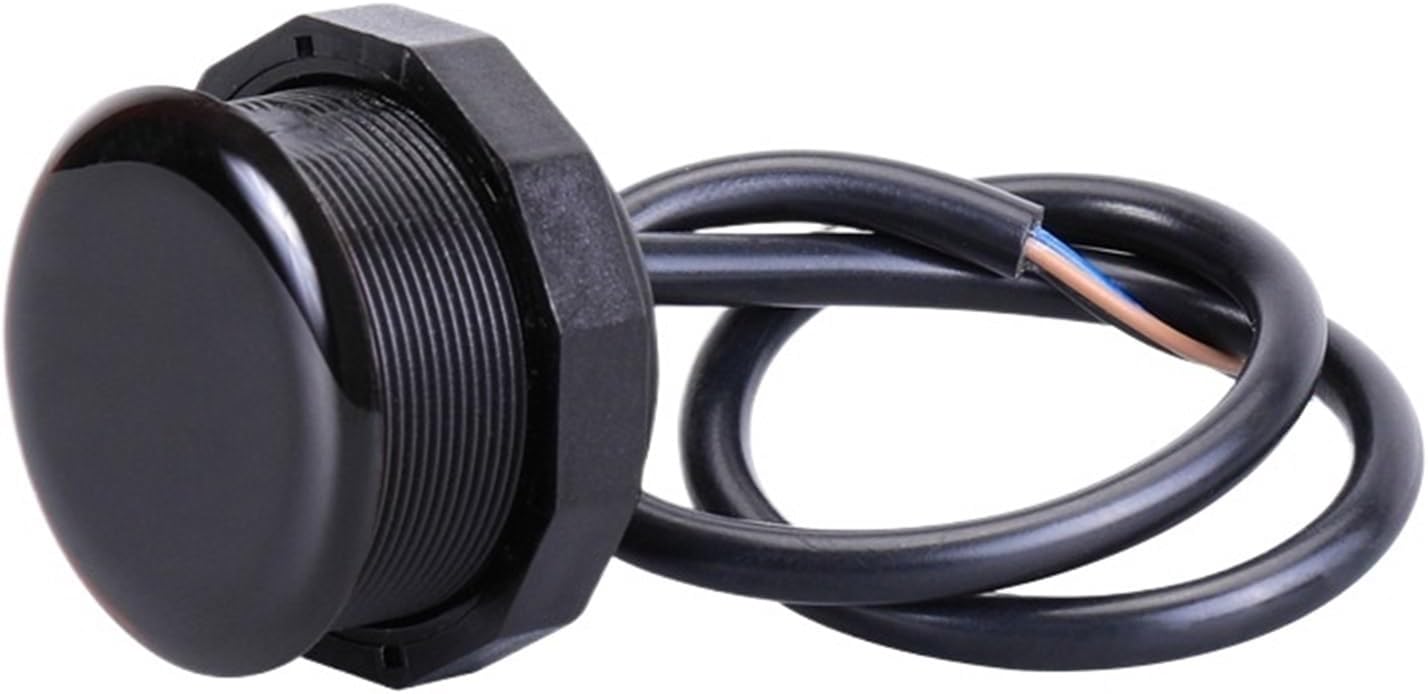

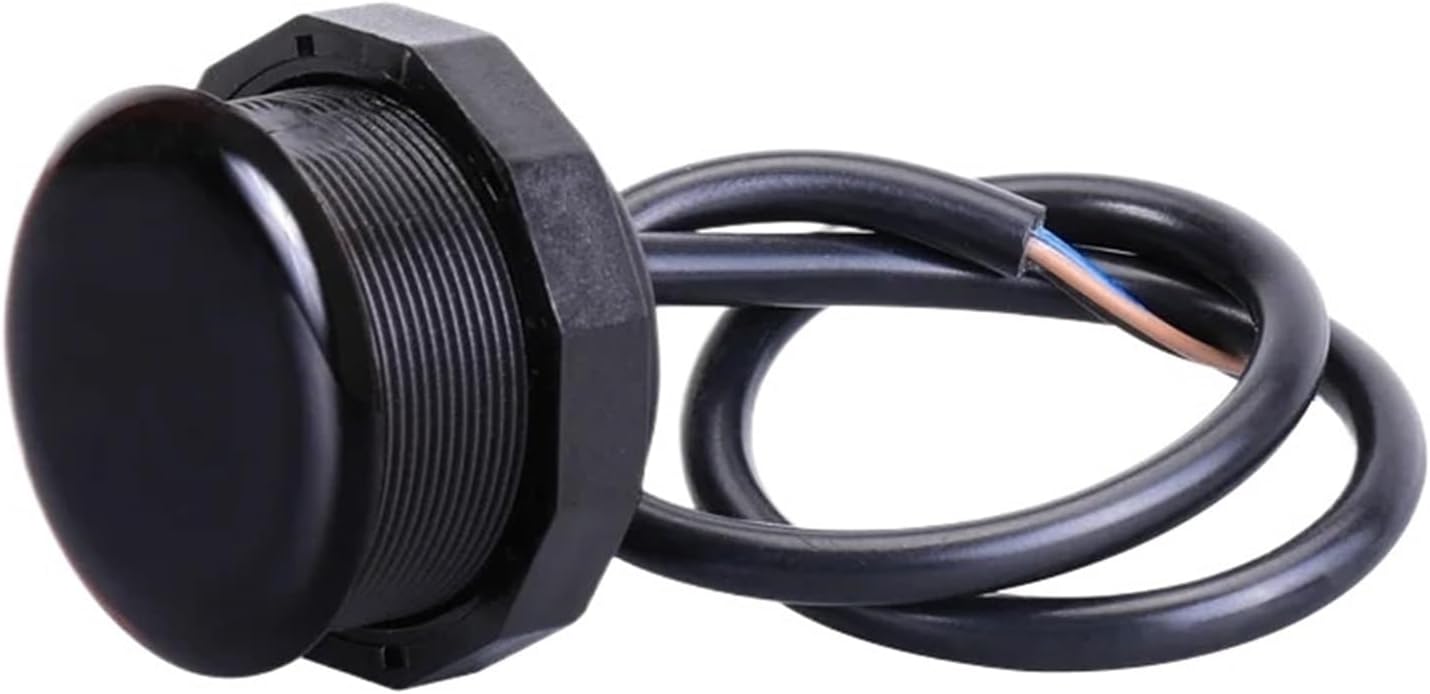

XKC-KD200 Active Infrared Sensors Intelligent Non-Contact Sensor Switch for Smart Home Devices(XKC-KD200-NPN NC)

Price: $45.88
(as of Nov 18, 2025 00:13:58 UTC – Details)


Sensors
1st. Overview
XKC-KD200 is an intelligent non-contact sensor switch. The sensor uses the principle of diffuse reflection of infrared
light on the object. When a person or object enters the sensing range directly in front of the sensor, the sensor immediately
judges that there is a sensor, thereby controlling the output signal ; After the person or object leaves the sensing range, it is
immediately judged that there is no sensing, and the output signal is released to achieve the purpose of intelligent control
1.XKC-KD200M——–Relay normally open 5V -24V output
2.XKC-KD200 MC———-Relay normally closed 5V -24V output
3.XKC-KD200N NPN——-open collector output (normally open) DC 5V-24V
4.XKC-KD200NC NPN——–open collector output (normally closed) DC 5V-24V
5.XKC-KD200V———High and low signal output (positive output) 5V-24V
2nd.Product Features
Can be used for: security alarm, sensor light, smart trash can, mirror light box, advertising machine, shoe polisher, sensor
water dispenser, vending machine, faucet, shower head and other functions. It integrates infrared emission, reception, and
intelligent control, with stable and reliable performance.
==========
Hign-concerned Chemical : None
is_customized : Yes
Theory : Optical Sensor
Model Number : XKC-KD200
Material : Polymer
Type : Optical-Electronics Sensor
Output : Switching Transducer
Use : Ray Sensor
Origin : Mainland China
