Taramps Pro 2.8S Black DSP Crossover Full Digital Signal Audio Processor and Equalizer with sequencer 15-Band Graphic Equalization 12 preset EQ 2-Channel in and 8-Channel Out Car Audio, Sound Quality

Price: $94.97
(as of Nov 27, 2025 20:05:50 UTC – Details)

Product description

1 Pro 2.8-S

2 Main Features

3 DSP System

4 Menu Navigation

5 Menu Structure

1 Technical Settings

2 Technical Settings (2)

PRO 2.4-S MAIN SPECS

Resolution 24bits Sampling Rate 48KHz Input Channel 2 Output Channel 8 IN / OUT Routing A, B, A+B General GAIN Adjustment -80 to 0dB Output GAIN Adjustment -45 to +15dB Input Impedance (RCA) 10K Ohms Input Impedance (High Level) 50 Ohms Output Impedance 47 Ohms MAX Input Level (RCA) 9VRMS (2V RMS) MAX Input Level (High Level) 28Vpp (10V RMS) MAX Output Level 5,6Vpp (2V RMS) Frequency Response (-1dB) 10Hz to 22KHz Total Harmonic Distor. 0,01% Signal / Noise Radio >90dB

Learn More About the DSPs and Crossover

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars 41

4.5 out of 5 stars 24

4.6 out of 5 stars 329

4.4 out of 5 stars 289

Price

$94.97$94.97

—

$85.27$85.27

$54.97$54.97

Input Channel

2

2

2

–

Output Channel

8

4

6

–

Bands

15

5

3

–

Dimensions

7.80″ x 1.46″ x 4.45″

7.80″ x 1.46″ x 4.45″

8.27” x 1.69” x 4.80”

7.13” x 1.57” x 5.71”

Weight

0.99lb

0.99lb

1.21lb

1.21lb

Product Dimensions ‏ : ‎ 7.8 x 4.45 x 1.46 inches; 15.84 ounces
Item model number ‏ : ‎ Processador PRO 2.8S
Date First Available ‏ : ‎ January 15, 2025
Manufacturer ‏ : ‎ Taramps Electronics Ltda
ASIN ‏ : ‎ B0DT4YV1WH
Customer Reviews: 4.3 4.3 out of 5 stars 41 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

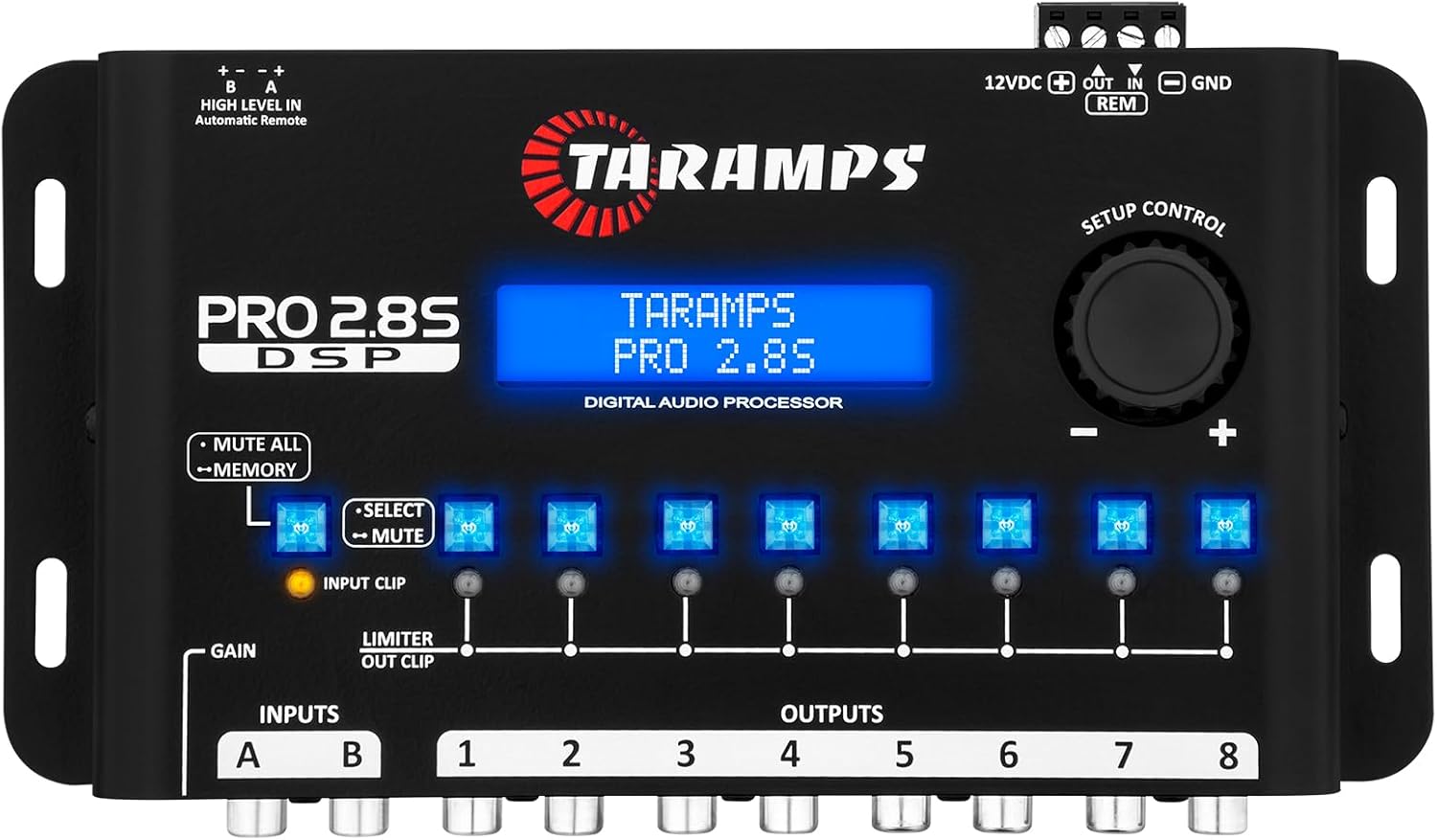

Pro 2.8S is ideal for 8-way projects, allowing detailed configurations, such as graphic and parametric equalizations, high-precision crossover filters, time alignment, phase inversion and adjustable limiters. In addition, it has an integrated audio generator, perfect for calibrations and tests, including frequency sweeps.
Band Equalizer: It has 15 bands of equalizaon, with aenuaon /boost of up to 12dB, at the center frequencies defined in the ISO standard (25 Hz to 16KHz, 2/3 octave).
Input Parametric Equalizer: EQ with 1 band and adjustable parameters, acts simultaneously on inputs A and B.
Crossover: Set the high pass (HPF) and low pass (LPF) filters of selected output way. The cutoff frequencies could be set from 10Hz to 22KHz, and are available some kinds of filters (Buerworth, Bessel, Linkwitz Rilley) in different slopes (-6, -12, -18, -24, -36 e -48dB/Octave).
Output: Set the level for each output way. Allow apply up to +15dB gain or -45dB attenuation.
Presets EQ: The Pro 2.8S has 12 preset equalizers. Select the music style and press the encoder center to apply the equalizaon curve: FLAT, LOUDNESS, BASS BOOST, MID BASS BOOST, TREBLE BOOST, POWERFUL, ELECTRONIC, ROCK STYLE, HIP HOP STYLE, POP MUSIC, VOCAL, COMPETITION.
Dynamic Mode: includes even more sophisticated features, such as peak and RMS limiters, among many other features that maximize sound performance.
Standard Mode: offers essential adjustments, such as a 15-band graphic equalizer and precise crossover filters, in addition to other advanced tools that ensure control and quality.
