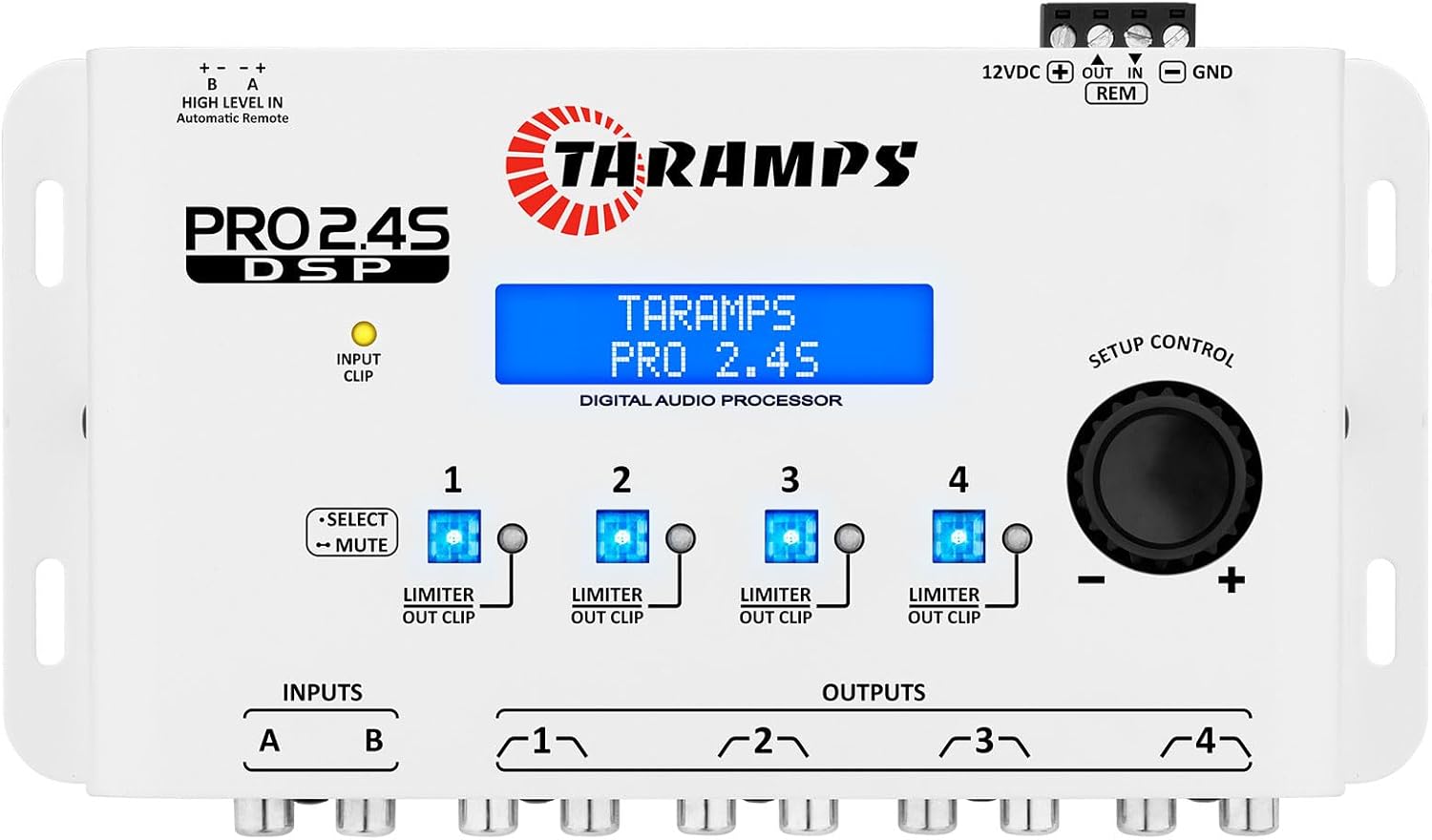

Taramps DSP Pro 2.4S White Crossover Full Digital Signal Car Audio Processor and Equalizer with Sequencer 15-Band Graphic Equalization 12 preset EQ, Remote Signal, Alignment, 2 Channel in and 4 Out
$64.97
Price: $64.97
(as of Sep 25, 2025 18:52:04 UTC – Details)
Product description
1 Pro 2.4-S
2 Main Features
3 DSP System
4 Menu Navigation
5 Menu Structure
1 Technical Settings
2 Technical Settings (2)
PRO 2.4-S MAIN SPECS
Resolution 24bits Sampling Rate 48KHz Input Channel 2 Output Channel 4 IN / OUT Routing A, B, A+B General GAIN Adjustment -80 to 0dB Output GAIN Adjustment 45 to +15dB Input Impedance (RCA) 10K Ohm Input Impedance (High Level) 50 Ohm Output Impedance 47 Ohm MAX Input Level (RCA) 5,9Vpp (2,1V RMS) MAX Input Level (High Level) 28Vpp (10V RMS) MAX Output Level 5,9Vpp (2,1V RMS) Frequency Response (-1dB) 10Hz to 22KHz Total Harmonic Distor. 0,01% Signal / Noise Radio >90dB
Learn More About the DSPs and Crossover
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 535
4.5 out of 5 stars 23
4.6 out of 5 stars 324
4.4 out of 5 stars 272
4.6 out of 5 stars 535
Price
$64.97$64.97
—
$89.00$89.00
$59.97$59.97
$64.97$64.97
Input Channel
2
2
2
–
2
Output Channel
4
4
6
–
4
Bands
15
5
3
–
15
Dimensions
7.80″ x 1.46″ x 4.45″
7.80″ x 1.46″ x 4.45″
8.27” x 1.69” x 4.80”
7.13” x 1.57” x 5.71”
7.80″ x 1.46″ x 4.45″
Weight
0.99lb
0.99lb
1.21lb
1.21lb
0.99lb
Band Equalizer: It has 15 bands of equalizaon, with aenuaon /boost of up to 12dB, at the center frequencies defined in the ISO standard (25 to 16KHz, 2/3 octave). Acts simultaneously on inputs A and B.
Input Parametric Equalizer: EQ with 1 band and adjustable parameters, acts simultaneously on inputs A and B
Crossover: Set the high pass (HPF) and low pass (LPF) filters of selected output way. The cutoff frequencies could be set from 10Hz to 22KHz, and are available some kinds of filters (Buerworth, Bessel, Linkwitz Rilley) in different slopes (-6, -12, -18, -24, -36 e -48dB/Octave).
Output: Set the level for each output way. Allow apply up to +15dB gain or -45dB attenuation.
Presets EQ: The Pro 2.4S has 12 preset equalizers. Select the music style and press the encoder center to apply the equalizaon curve: FLAT, LOUDNESS, BASS BOOST, MID BASS BOOST, TREBLE BOOST, POWERFUL, ELECTRONIC, ROCK STYLE, HIP HOP STYLE, POP MUSIC, VOCAL, COMPETITION.
Customers say
Customers find the digital signal processor delivers crisp and clean sound with a big bass range, and one customer mentions it brings their audio setup to life. Moreover, the device offers good value for money, with one customer noting it beats the expense and headache. However, customers disagree on the ease of setup and control settings, with some finding it easy to set up while others find it difficult. Additionally, the manual receives negative feedback for not being included with the product.
